Nov 18, 2018 · Oct 22, · The LC2i is a 2 channel line output converter and in order build a front stage and sub, you will need to find one full range signal pair in your truck. I don't have any wiring diagrams for your Sierra - hopefully someone on the forum will share their knowledge with you. Dec 23, · I just ordered the lc2i to replace my line out converter. The AudioControl LC2i is also a super low distortion . System Diagrams System #1 -Subwoofer add-on – Tap into rear speaker wires for LC2i signal input .LC2i - 2 Channel Line Out Converter with Accubass and Subwoofer Control. The AudioControl LC2i, is a compact, two-channel processor with active input circuitry, which allows it to accept ...

Car Audio Wiring Diagrams Audiocontrol Top Electrical Wiring Diagram. Car Stereo System Audio Control EPICENTER Owners Manual 16 pages volt ground remote turn-on and connect the illumination wire. ... The LC2i is a compact two-channel processor with active input circuitry which allows it to accept speaker-level signals of up to watts per ...

Lc2i wiring diagram

17. Missoula, MT. Jun 26, 2014. #5. You will probably have to splice extra speaker wire onto the existing factory wire for the rear speakers to give you more length. Then plug those wires into your lc2i. You can extend them as far as you want so you can mount the Audiocontrol unit just about anywhere you want. 3. Either the JL self powered sub or the Pioneer amp will need an 8 gauge power supply. Assuming I run that from the battery and fuse it properly is there any reason I can't power the LC2i from the amp (ie: run a power lead from where the 8 gauge is connected to the amp to the LC2i) or do I have to run a separate power supply from the battery ... Audio Control Lc6i Wiring Diagram images and pictures collection that uploaded here was properly selected and uploaded by author after choosing the ones which are best among the others. The LC2i, is a compact, two-channel processor with active input circuitry, which allows it to accept speaker-level signals of up to watts per channel from ...

Lc2i wiring diagram. MSD Ignition Wiring Diagrams Diagram, Msd, Wire . Got the lc2i hooked up to the rear deck speakers and the subs just dont hit that hard at all and when i try to increase the. Lc2i pro wiring diagram. I wanna hook a line out converter to the wires leaving the factory bose amp. The main reason for this was the conflicting ground on pin 9 in some ... Any recommendations for adding a powered sub? I'm looking for the simplest install, so I'm thinking some sort of shallow mount sub underneath the rear seat on the driver side versus behind the seat. I'm thinking an AudioControl LC2i and the powered sub would be the least wiring after (power, ground, RCAs and tapping into existing speakers ... For starters, finding a wiring diagram that was accurate was a challenge. Luckily the people at my Acura dealership are great and supplied it right away. Wiring Diagram 2011 MDX w/Tech View attachment 67898 Since the 2011 MDX has a factory amplifier, we want to splice into it from the output wires. 22410 70th avenue west mountlake terrace, wa 98043 u.s.a. phone: 425-775-8461 fax: 425-778-3166

The LC2i, is a compact, two-channel processor with active input circuitry, which allows it to accept speaker-level signals of up to 400 watts per channel from factory-installed source units or amplifiers. It converts them to high-quality pre-amp signals that can then be directed to after-market processors and/or amplifiers. LC2i So the LC2i is grabbing signal from my rear speakers, which are still connected to the OEM amplifier in the trunk. The amplifier is no longer feeding signal to the front speakers, as I have disconnected the wire. I used the existing OEM wiring instead to run to my Alpine 4-Channel. Apr 08, 2019 · Below is my wiring diagram and i just want to make sure wiring up the Power and Ground like I have it ok, basically using the Power/Ground from the Amp to power/ground the LC2I. The LC2I will have speaker level inputs to control the on/off and the line out to the Amp will control the Amp on/off. Orbit sprinkler wiring diagram collections of troubleshooting no power to lawn sprinkler timer unit. Amazon orbit 6 station indoor outdoor sprinkler timer model. Basic Sprinkler System Irrigander 4 2 Pro Expander Installation Diagram Sprinkler Irrigation Irrigation System Sprinkler System Installation And because timers and valves are often separated by some distance it can be a …

May 23, 2021 · After the lc2i turns on it provides a 12 volt trigger output to turn on your amplifier. The preferred wire gauge for the connection is a 18 awg and a 1a fuse is recommended. System diagrams system 1 subwoofer add on tap into rear speaker wires for lc2i signal input lc2i 2 channel line out converter with accubass and subwoofer control. LC2i, LC6i, LC7i, LC8i, LCQ Basic · Basic · Basic · Kitchen Sink · With Summing · Multi-Amp · With EQS · With Factory Amp · With Epicenter · SPL Install.How to use the amp wiring gauge chart: Select the column for the length of wire you need at the bottom of the chart. I installed it before 2 amps and 2 12" subs by splicing into the OEM subs wiring. Once set the LC2i let me increase the volume on both amps at the same time. The OEM amp in my JK is good enough for the components so I used the LC2i just for bass. The LC2i is designed just for amp installation with OEM receiver. Once installed use amp per ... The wiring harness for these Toyota trucks isn't too complicated, so I'm sure you can find a diagram. Splice and solder your connections properly and you cant go wrong. Also, with the Audio Control LC2i, using an accessory turn on, rather than its automatic one, has helped remove turn on pops for several applications I have installed them in.

Remote Power Wire For Amp Dodge Challenger Forum

I know that we are all also using the picture off the internet of the wiring diagram that doesn't look awesome. So I also created a high quality wiring diagram! The video is here: 2017-2021 Honda CR-V Subwoofer Install! If playback doesn't begin shortly, try restarting your device.

Model Year 2018 And Newer Sub Amp Install Subaru Crosstrek And Xv Forums

The LC2i takes high inputs and has 2 separate RCA outputs, 1 for full out put and 1 for sub output. ... Now for this, I used the wire diagram above which does have a typo but hopefully we can get that cleared up. However for now I have wired mine as follows Front Right Speaker + A13 (Gray), Front Right Speaker - A12 (Purple), Front Left Speaker ...

Subwoofer Wiring Diagrams National Auto Sound Security

The ACX-300.4 has the potential to output 150W RMS for 4 Ohm speakers when bridging two outputs together. To do...

Preamp Signal Where Do I Get Signal For The Lc2i Line Out Converter Clublexus Lexus Forum Discussion

I just got a new car and can't find a lot of resources on how to connect the AudioControl LC2i line out converter to a factory system. Does this pic sum it up? I drew it in MS Paint. Ideally I'd use wire splice connectors to tap into the speaker wires. What I'm really not sure about is the lack...

Full Review Writeup And Installation Steps Ctr Subs Amp Center Channel And Door Speakers Page 30 2016 Honda Civic Forum 10th Gen Type R Forum Si Forum Civicx Com

The LC2i requires a +12V in order to run properly. For best results, the +12V should be provided by the battery via direct line or from a power distro-block. The preferred wire gauge for the connection is a 18 AWG, and a 1A fuse is recommended. How does GTO work. GTO or "Great Turn On" signal sense turns on the LC2i.

Added Subwoofer To Hk Audio Xbimmers Bmw X1 Forum

Sep 18, 2021 · In short the lc2i gives you the brilliant sound quality that selectable gto auto sensing turn on circuit no remote wire needed system diagrams. Lc2i wiring diagram . System diagrams system 1 subwoofer add on tap into rear speaker wires for lc2i signal input lc2i 2 channel line out converter with accubass and subwoofer control.

Lc2i Wiring R Carav

GTO™ Great Turn On: No need to look for a trigger wire. However you still need power and ground. Connect the speaker level inputs and as soon as you turn on the factory audio system the LC2i will power up as well. After the LC2i turns on, it provides a 12 volt trigger output to turn on your amplifier. A Jumper which you can reach from the

Car Application Diagrams Audiocontrol

I have the amp wiring kit (8 gauge), an LC2i, JL audio JX250/1, and a boxed JL audio 8W1V3. I am familiar with all power wiring and I have worked with LOC's back in the day. To my understanding the best way to wire this system is to tap the LC2i into the Front left and right door speakers behind the head unit before the factory amp.

Full 5th Gen Subwoofer Installation Guide W Lc2i Honda Cr V Owners Club Forums

You should have a power wire coming in from your battery into the +12V input of the LC2i. There is no wire to connect to the remote in (once speaker wires are connected into the LC2i the signal of the music will activate it and turn the LC2i on. You will then have a wire coming from the LC2i remote out and into the remote in of the amp.

How To Power And Turn On The Lc2i Audiocontrol

I go over how to wire the Alpine 445u power pack, LC2i line out converter, and a sub/amp to a stock head unit. This guide is for those who have a substandard...

Car Application Diagrams Audiocontrol

LC2i - 2 Channel Line Out Converter with Accubass and Subwoofer Control. The AudioControl LC2i, is a compact, two-channel processor with active input circuitry, which allows it to accept speaker-level signals of up to 400 watts per channel from factory-installed source units or amplifiers. It converts them to high-quality pre-amp signals that ...

Questions And Answers Audiocontrol Lc2i 2 Channel Line Out Converter With Accubass Black Lc2i Best Buy

Audio Control Lc6i Wiring Diagram images and pictures collection that uploaded here was properly selected and uploaded by author after choosing the ones which are best among the others. The LC2i, is a compact, two-channel processor with active input circuitry, which allows it to accept speaker-level signals of up to watts per channel from ...

Amplifier Upgrade Thoughts And Info 2nd Gen Charger Forums

3. Either the JL self powered sub or the Pioneer amp will need an 8 gauge power supply. Assuming I run that from the battery and fuse it properly is there any reason I can't power the LC2i from the amp (ie: run a power lead from where the 8 gauge is connected to the amp to the LC2i) or do I have to run a separate power supply from the battery ...

For Those Of You Running An Lc2i For A Subwoofer On 10 Speaker Systems Page 2 2016 Honda Civic Forum 10th Gen Type R Forum Si Forum Civicx Com

17. Missoula, MT. Jun 26, 2014. #5. You will probably have to splice extra speaker wire onto the existing factory wire for the rear speakers to give you more length. Then plug those wires into your lc2i. You can extend them as far as you want so you can mount the Audiocontrol unit just about anywhere you want.

Customer Reviews Audiocontrol Lc2i Black 2 Channel Line Output Converter For Adding Amps To Your Factory System At Crutchfield

Installation Lc7i

Audiocontrol Lc2i 2 Channel Line Output Converter For Adding Amps To Your Factory System At Crutchfield

Diy Subwoofer And Amplifier Installation Nissan Forum Nissan Forums

Sony System To Aftermarket Experienced Eyes Requested Ford F150 Forum Community Of Ford Truck Fans

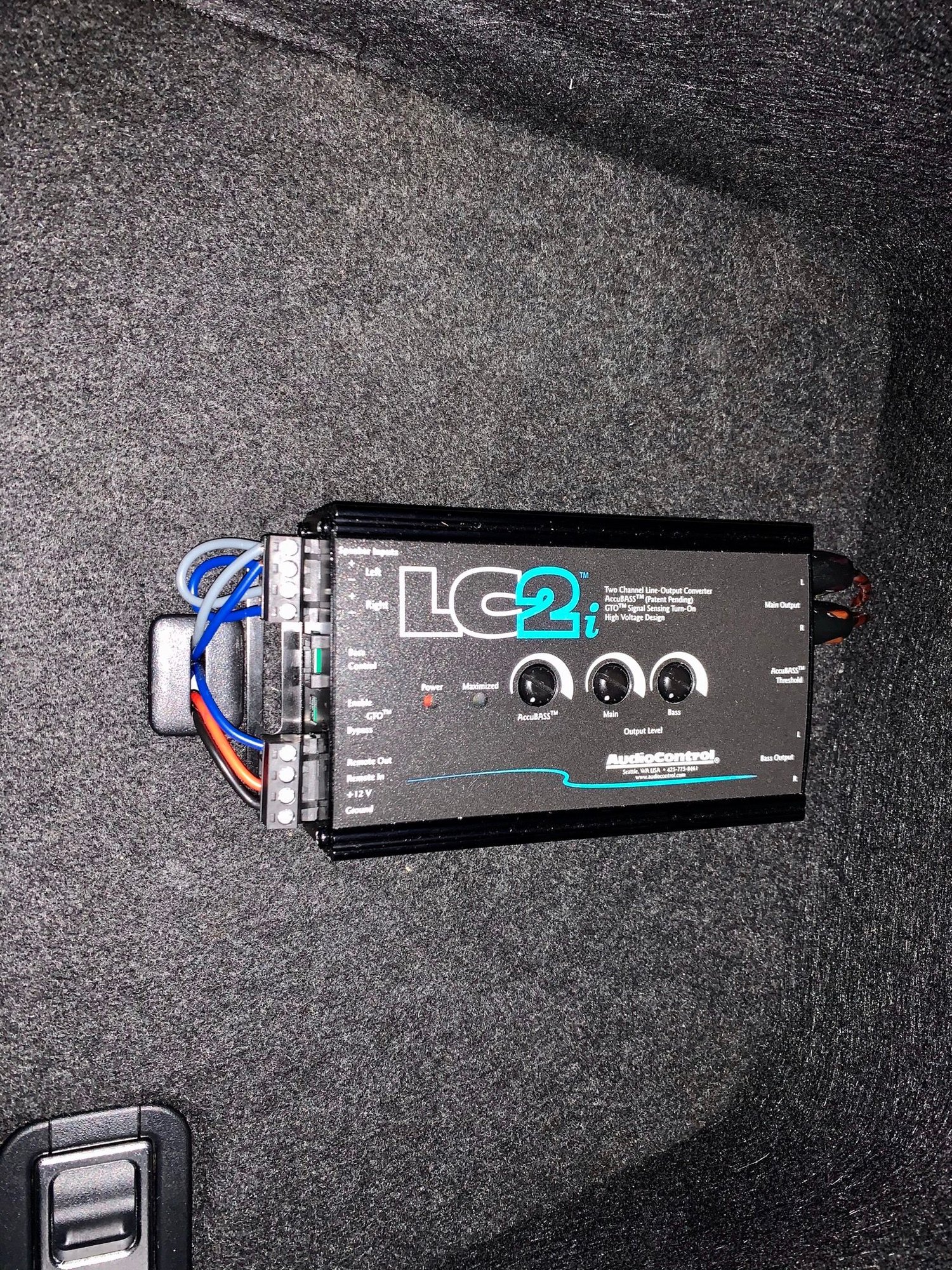

Amp Lc2i And Sub Install Bmw 5 Series Forum G30

Car Application Diagrams Audiocontrol

How To Wire Alpine 445u Lc2i Loc And Subwoofer Complete Wiring Guide Youtube

Aftermarket Sound System Info Thread Tesla Owners Online

Lc2i And Amp Wiring Install Drive Accord Honda Forums

Sub Woofer And Amp Installed Upgraded For My 2019 Rtle Over The Memorial Weekend Honda Ridgeline Owners Club Forums

Wiring Audiocontrol Lc2i Rear Speaker Signal Vs Front Speaker Signal Fiesta St Forum

What Channel Outputs From My Factory Amp Should I Connect To My Lc2i Audiocontrol

Audio Systems Page 5 Bmw X5 And X6 Forum F15 F16

F22 Hk Amplifier Connector Pinouts 2addicts Bmw 2 Series Forum

Audiocontrol Lc2i 2 Channel Line Output Converter For Adding Amps To Your Factory System At Crutchfield

Car Application Diagrams Audiocontrol

Audiocontrol Lc2i Pro Active Line Out Converter Malaga Car Audio

Factory Head Unit Sub And Amp How To Chrysler 200 Forum

Noob Here So I Want To Install A Lc2i For My Sub It Is Okay If I Use My Back Door Speakers I Don T Have Any In The Back Deck And Do

Audiocontrol Lc2i Pro 2 Channel Line Output Converter With Accubass At Crutchfield

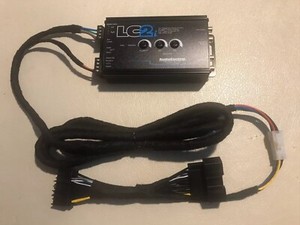

2017 2019 F250 Oem Radio Plug Play Harness For Audiocontrol Lc2i Sub Amp Install Ebay
