• Sun-path diagram as the name suggests is something that is used to determine the location ,in the sky, of the sun at any point of time during the day, throughout the year. 4. Use in Functional Design The most immediate use of a sun-path diagram is that the solar azimuth and the altitude can be read and hence the position can be exactly ... Note (Oct 2018): I'm aware of the broken map (see this article for more context). Stay tuned — I'm working on a new version! SunCalc is a little app that shows sun movement and sunlight phases during the given day at the given location.. You can see sun positions at sunrise, specified time and sunset.The thin orange curve is the current sun trajectory, and the yellow area around is the ...

The soltice paths mark the boundary of the sky area that the sun traverses over a year. The diagram shows that there is no point in the year when is the sun directly overhead (zenith=0) – note that this location is north of the Tropic of Cancer.

How to read a sun path diagram

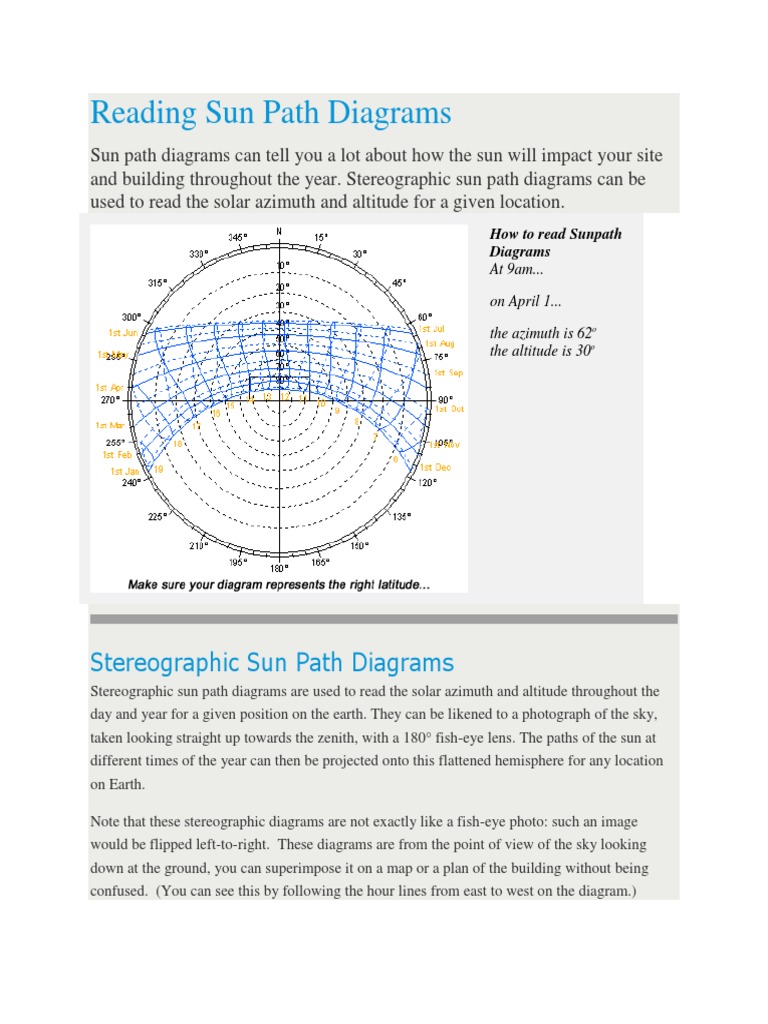

Annotated stereographic sun path diagram. Locate the required hour line on the diagram. Locate the required date line, remembering that solid are used for Jan-June and dotted lines for July-Dec. Find the intersection point of the hour and date lines. Remember to intersect solid with solid and dotted with dotted lines. Sun Path Diagrams The solar altitude, and the solar azimuth, can be read directly for any date of the year and any hour of the day from the solar charts or sun path diagrams. There are several methods of projection for representing the sun"s apparent movement two dimensionally but the "stereographic" method described here is generally used. 2.2. sun patH dIagraMs Sun path diagrams are a convenient way of representing the sun's changing position in the sky throughout the year. They are projected onto a horizontal plane, on which the four cardinal points (North, South, West and East) are represented. The plane has a base with concentric circles and radial lines (Figure 2).

How to read a sun path diagram. An introduction into Solar Geometry and basics of sun-path diagram This Sun Path Diagram tutorial was just one simple, basic way of creating a Sun Path. You can choose to add more detail or apply this to other kinds of diagrams based around the site. If you’re interested, we’ve also created a 3D Sun Path Diagram Tutorial to show you another way of spicing up your site analysis. Sun-Path on Map. This app overlays a dynamic 2D Sun-path diagram on a Google Map. To move the sun-path diagram around, simply click and drag the location marker within the world map. It should be fast enough even on a phone or tablet to update in close to real time. You can also double-click or double-tap anywhere within the map to set the ... You can use the map to drag the location around and interactively see how the Sun-path diagram and shadow projections change. You can also directly relate the 3D Sun-path and day-length, as well as a range of different 2D Sun-path projections.

There are several good online tools for visualising the path of the sun at your location. Suncalc – really easy to use and gives you an intuitive representation of the suns path laid over a google maps image of your site. Like most of these options you can generate a diagram for any time of the year. Stereographic sun path diagrams can be used to read the solar azimuth and altitude for a given location. How do you make a sun path diagram? The Steps. initial map. use Sun Calc to find your sun path. adjust to a generic date and time. locking layers can be quite useful. adjust the sun path image. the circle is the base for the sun path diagram ... Understanding and being able to read sun paths is a crucial part of an architectural site analysis and can massively inform your designs. In this video I'll ... Using the Display Options… menu item ( Ctrl+F4 ), you can determine what components of the sun-path diagram are displayed and how they are shown. This allows you to tailor the image to suit your particular demonstration or application.

shows the path of the sun at the equator. The sun rises in the east at 6 am, passes directly overhead at noon, and sets in the west at 6 pm. 4. cloud shown next to Point 4 above refers to a band of clouds that circles the globe at the latitude where the sun passes overhead at noon. This marks the position of the "intertropical convergence hello!this video shows why the sun path diagram is important in civil engineering and architecture studies. in this video i have explained how to read a sun ... A sun path diagram provides the track of the sun over a year's time for your local latitude and time zone. On the order form provided by the Univ. of Oregon online, you'll find several options to choose from. The first one to pick is "Look up location with a U.S. zip code." Next, select your time zone. its own sun path diagrams. fThe horizon is represented as the outer circle, with you in its center. The concentric circles represent the angle of the sun above the horizon, that is, its height in the sky. fA sun path diagram is a tool that helps you read the movement of the sun throughout the day and during the seasons.

Zenith - an overview | ScienceDirect Topics

Sun path diagram. Sun path diagram (also known as "solar path diagram", "sun chart" or "solar chart") is a visualization of the sun's path through the sky. This path is formed by plotting azimuth (left-right) and elevation (up-down) angles of the sun in a given day to a diagram. It is a covenient way the check the sun direction by time.

Rainwater Harvesting for Drylands and Beyond by Brad ...

How to read a sun path diagram.This is in response to a question someone asked me about the ARE 5.0 PPD and PDD Study Assignment Course:https://hyperfinearch...

Sunpath Diagram

How to use a Sun-Path Diagram to figure out where the sun will be at your latitude any time of day, any day of the year. More-detailed info, along with how-to- ...

ARE 5.0 - How to Read Sun Path Diagrams - Hyperfine Architecture

1) Select a point in the map, can set this centre by search on a given address and can drag the yellow bulb in the map to adjust where you want (for instance in your garden to later show sun or shadows directions). To find in the map, the coordinates (latitude, longitude), read the guide How to use the tool map.

Ecliptic traces the sun's path | Astronomy Essentials | EarthSky

Below is a solar chart for a location in the southern hemisphere. It identifies the position of the sun on March 1st at 10am. The following diagram shows the sun paths at 4 different latitudes. Visit the SunCalC app to see how the sun's path changes depending on the time of year, time of day and location on earth. .

sunpath diagrams- different forms and their uses in ...

An explanation on reading sun path diagrams, which are used to find the suns position with respect to a location on earth.

How to Read an Astrology Chart: 10 Steps (with Pictures ...

An interesting co-incidental quirk of polar Sun-path diagrams is their direct relationship with a spherical world map of the same radius centered at the geographic location of the site. As you move the site around, the Sun-path on the diagram is exactly coincident with the sub-solar path on the Earth's surface.

How to read the sun path diagram - Quora

You can read the direction/azimuth on the outer edge of the chart. North is 000, East is 90°, South is 180°, West is 270° and then of course you get every 10 dgerees in between. To find the azimuth of the sun, draw a line from the center to the outer edge of the chart, going directly through the sun position you marked.

ARE 5.0 - Sun Path Diagram

Figure 1. Use the Sun-Path Diagram that relates most closely to your latitude (in this case, 32º South latitude). Find the line representing the sun's path for the date you are seeking (in this case, June 21—the winter solstice in the southern hemisphere); the line representing the sun's path on this date is highlighted in bold.

How To Create a Sun Path Diagram â€“ Adobe Illustrator Tutorial ...

Sun path - Wikipedia

To record a site reading, trace around the objects reflected on the dome directly onto the sunpath diagram while viewing from about 15 inches above the dome. To avoid breaking the pencil lead, make a light tracing working under the dome, and then remove the dome to darken it.

Earth Science Reference: Lab#8: Sun's Path across the ...

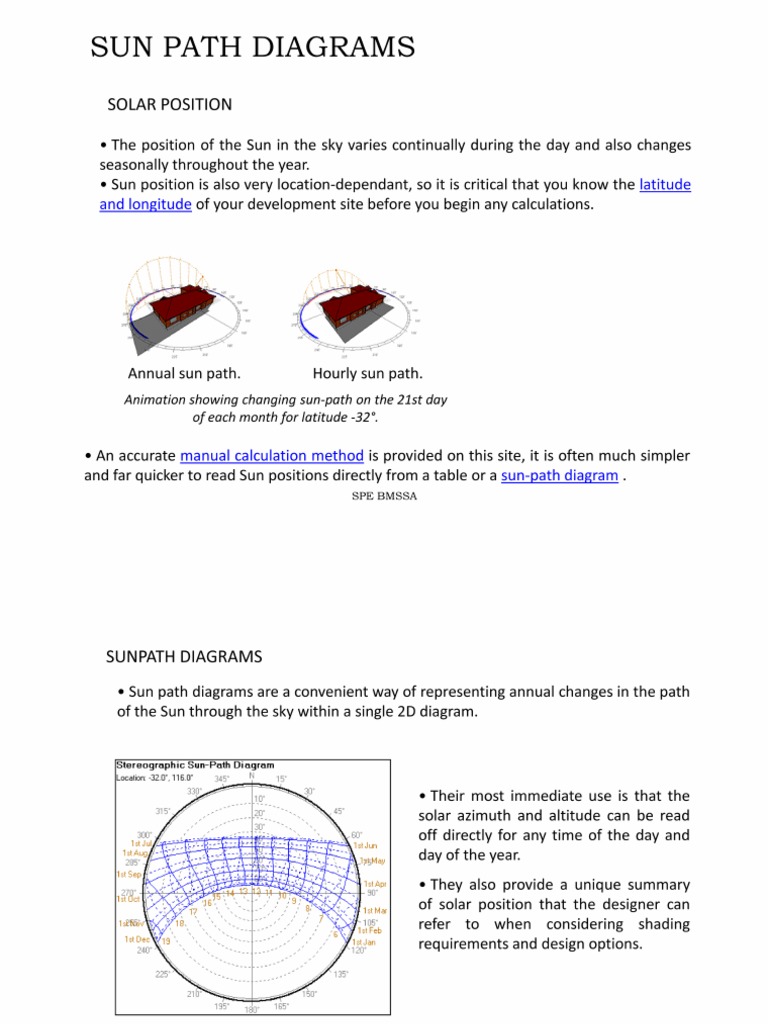

2.2. sun patH dIagraMs Sun path diagrams are a convenient way of representing the sun's changing position in the sky throughout the year. They are projected onto a horizontal plane, on which the four cardinal points (North, South, West and East) are represented. The plane has a base with concentric circles and radial lines (Figure 2).
