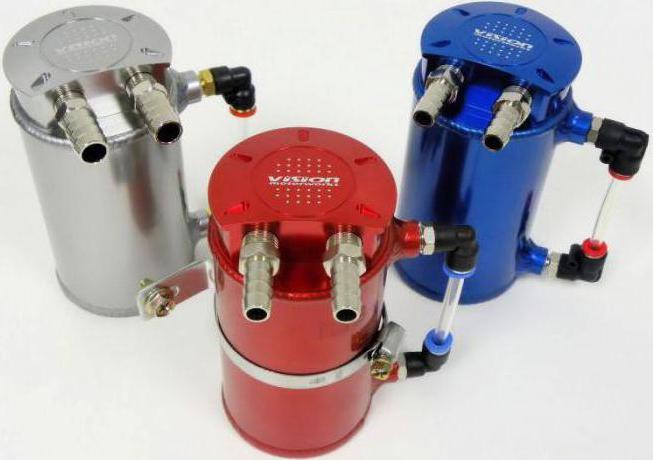

A catch can is designed with baffling on the inside to trap oil and vapor in the bottom side of the reservoir while still allowing the crankcase to breathe freely through a filter that's on the top side. An oil separator is placed in line between PCV hoses. It has a mesh screen and filter material that traps the oil and vapor. Oil Catch Cans and PCV Breathers and Accessories Dual Port with Breather 8AN 10AN 12AN valve cover attachments, weld bungs, hoses, fittings and more! For use with LS1 LT1 Coyote Mod Motor LS2 LS3 LS4 LS6 LS7 LSA LS9 LSX 4.8 5.3 6.0 6.2 SBC BBC SBF BBF engines

Only 5 to 10% of the oil found in the intake manifold comes from the "clean side". You can just buy two Elite Engineering cans or one like shown in this post that has dual cans on one bracket. (Ignore the LS1 valve covers with the second port hooked up to the other valve cover)

Ls1 catch can diagram

Yes LS1 was all aluminium. LS1 & LS2 will look the same to a total noob. The car was in a wreck, so maybe they cracked an LS2 valve cover and replaced it with an LS1 valve cover. LS2 will have these items that an LS1 wont. 4 bolt 90mm electronic throttle body. This Block casting number, just below the rear left cylinder head. 6.0 cast into the ... Road & Track - Here's an LT1-swapped Ferrari 250 2+2, for Some Reason. 93lt1fun · 10 d ago. Jan 12, 2022 at 04:05 PM. I have a stock LS1 Carburated with the Edelbrock/ MSD Kit. My valley tray does not have a breather like other later LS motors. I need to set up a PCV system for it but not sure whats the best way to. I don't want pressure problems and start blowing seals or have the motor running like trash. I also have a catch can with an optional breather that can be plugged.

Ls1 catch can diagram. MIGHTY MOUSE CATCH CAN - WILD - BILLET BRACKET - GEN 3 CTS-V & GEN 6 ZL1 CAMARO - 16B $427.00. Add to Cart Please login to add to Quote. MIGHTY MOUSE CATCH CAN - MILD - BILLET BRACKET - 98-02 F-BODY - 17B $314.00. Add to Cart Please login ... Purchase 2004-2006 Pontiac GTO Elite Engineering Oil Catch Can. Next, download the installation instructions below. Installation instructions are for Corvette LS2 which will be the same instructions for 2004-2006 Pontiac GTO, including both LS1 and LS2 engines. DOWNLOAD (.pdf format) 2004-2006 Pontiac GTO Oil Catch Can Installation Instructions. S1-LS1 DC3 Dual Oil Catch Can. Type: Closed Loop, Trap Design. Traditional Oil Catch Can system. SIZE: 2.5" Diamter x 6" Tall Cylinders. Connection Sizes: Default sizes is 3/8", but other sizes are available for this model by request. Cost: Base design is $265.00 Plus Postage C5/C6 Corvette PCV Catch Can Kit (-8/-10/-12)AN, MIGHTYMOUSE PCV can set up with -8AN,-10AN,-12 inlet and PCV valve exit for 800-1200hp capacity -Connects between oil fill adapter and intake manifold.

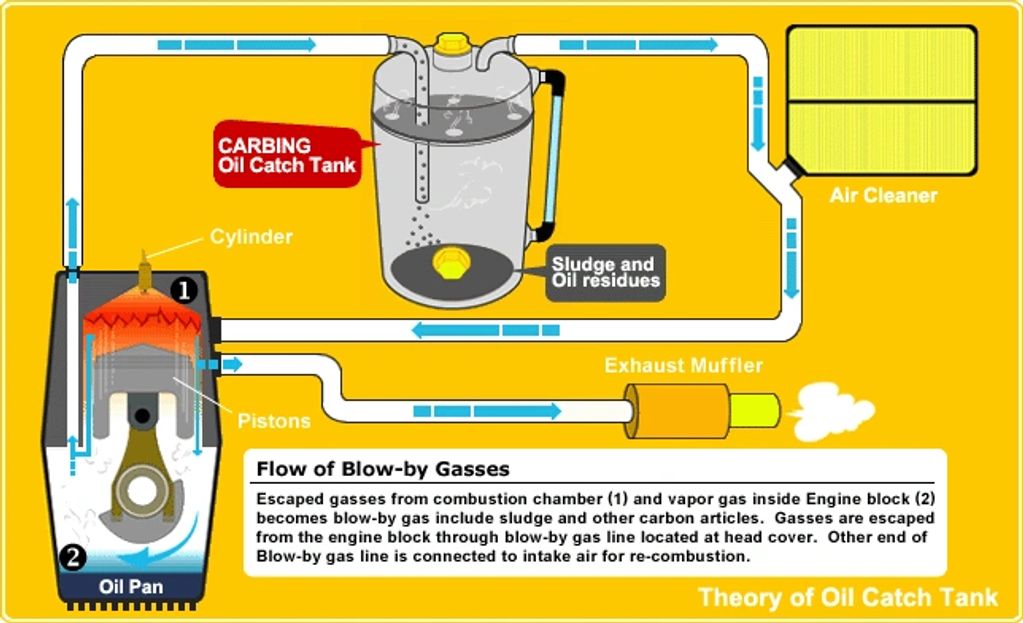

Catch Can Helper; All Products. LS & Engine Bay; CTS-V1; T-Shirts & Decals; Wheel Spacers; Interior Related; Gift Card; eBay Stuff; Media. Videos; Customer Galleries; MMS ET LIST; MMS HP LIST; More. received_1620210881676471. Screenshot_20200602-092125_Ultimate Phot MM CTS-V1. received_1620210881676471 ... Oil catch cans and breather tanks look similar and do similar jobs, but they serve different purposes. Oil Catch Cans Normally, the PCV (positive crankcase ventilation) valve uses intake vacuum to relieve the pressure inside your crankcase, but that can result in oil mist and other blow-by contaminants building up on the valve and pistons, especially in direct-injection engines. Norris Motorsports Gen2 PCV Catch Can - $139 Shipped. Some applications require extra brackets, spacers or bolts and are available at extra cost. Please call for more info. 2005 & up Vettes still using the factory fuel rails covers and wanting to mount the can out in front of the cover will require a 1.5" 10mm spacer and 1.75" long 10mm x 1.5 ... The diagram below illustrates the basics of how a catch can works. The purple arrow represents the air/oil blow-by mixture coming in from the crankcase. It enters the catch can where the oil is collected at the bottom.

Got tired of watching other people installing oil catch cans wrong, so here are some tips to really prevent carbon buildupIts just one tip, really: vent all ... Re: LS3 Catch Can - Best Routing Option. An open system will work fine with the MAF, you just have to plug all the holes on the TB and intake, deleting the PCV system completely. Run a -10 hose from each valve cover to a vented can, and run a -6 line from the valley cover to the vented can. Done. From the outside, the connection is in the same place as the LS6, and yes it has the same oil problems. I put the Home Depot Oil catch cans on my LS2 GTO and I am catching oil, so the problem is not fixed with this setup. I read somewhere that all the recent LSx motors have the oil problem with the PCV system. GM Truck Catch Can Kit. This installation kit was designed for most GM engines including LS1, LS2, LS3, LS6, LS7, L76, L99.

My catch can routing ok? - Page 16 - LS1TECH - Camaro and ...

The LS1 engine was internally stock, but was equipped with an LS6 camshaft and valvesprings. Building a Race Car around a Turbo System. The custom turbo kit on the TrailBlazer SS and the STS turbo kit mentioned earlier represent a system designed to fit within the confines of essentially stock vehicles. For vehicles intended more for the drag ...

Catch Can help please! Previously installed! (Pic) - LS1TECH ...

The early setup: Look at your throttle body and you'll see a hose connecting it to the rocker cover. Disconnect it at the throttle body end and re-route it to the catch can. On the front of the inlet manifold (same side) you'll see another hose that wraps around the back of the motor.

Installing a oil catch can on a Ls1

I get asked all the time What is a Oil Catch Can? Do i needed one? and How do i install one. In this clip I explain the importance of having one, How to inst...

01 F-Body PCV Catch can plumbing question - LS1TECH - Camaro ...

Agree, no PVC catch can is breathing from the atmosphere. Plus as stated the system is supposed to suck the air from the valve covers from the crank case and is now sucking air from the atmosphere (path of least resistance). What means....You have an ineffective/non working PVC system.

How to install Oil Catch Can On The Silverado

5,669 Posts. #5 · Sep 7, 2013. 65ChevyIINova said: I am putting an LS1 intake on my 5.3 and I am not sure if my plan for the PCV hose routing is 100% correct. My drivers side valve cover has the hole for the PCV hose. This originally just went to an opening on the top of the truck intake. There is also a port on the passenger side valve cover ...

2004-2006 Pontiac GTO Oil Catch Can - Mark Quitter Racing

Joined Oct 29, 2004. ·. 8,810 Posts. Discussion Starter · #1 · Sep 24, 2009. Only show this user. I ordered the ls1 dc3 catch can setup from Saikou Michi Co about 2 weeks ago. It arrived a few days ago and I just got it put in. I had to bend the bracket a bit, and remove the handle for my optima and twist the terminal around to the side a bit.

Random Time: Budget Dual Oil Catch Can Setup | Car Audio Advice

The catch cans and systems only work as well as you did making sure what you bought is what you need. After determining which can type you need, you may also want to make sure that the hoses and fittings mounted to it and your engine are right for your application. Above is a quick spreadsheet (tab) to help you see why the right size hoses make ...

Chevy SS LS3 V8 Catch Can Install | Elite Engineering E2 Catch Can

Custom Swirly Black. 2001 WS6 M6. The catch can wont work nearly as well with a breather. The intake will draw air in from the path of least resistance, which will be the filter. And any pressure build up in the cover will be lowered b/c some of it will leak out into the filter path.

Another pcv thread | Just Commodores

I have a stock LS1 Carburated with the Edelbrock/ MSD Kit. My valley tray does not have a breather like other later LS motors. I need to set up a PCV system for it but not sure whats the best way to. I don't want pressure problems and start blowing seals or have the motor running like trash. I also have a catch can with an optional breather that can be plugged.
