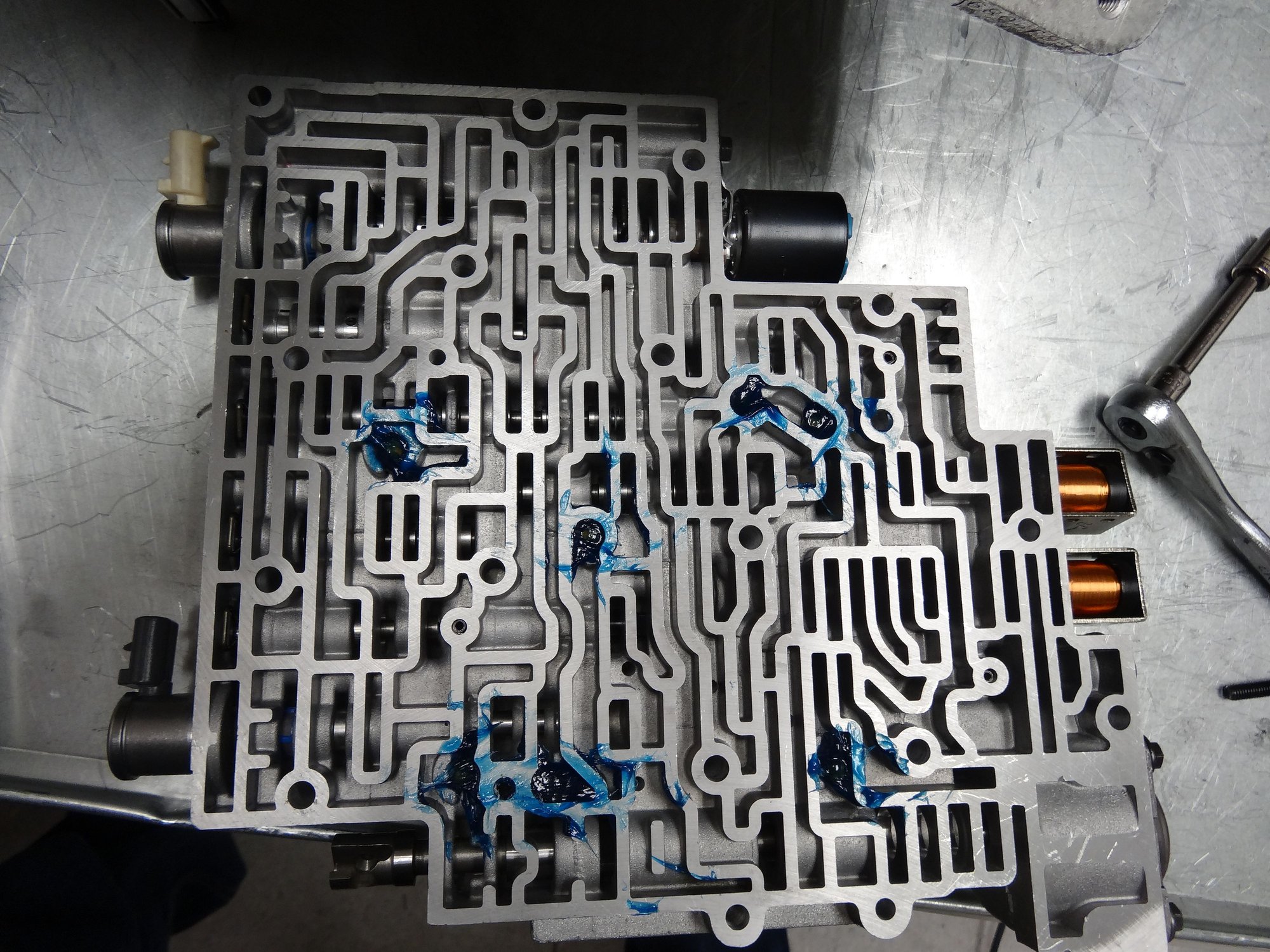

Retain the balls in their respective holes or channels with TransGel or Vaseline. Install the stamped steel plate on the left rear corner of the separator plate and the accumulator body on the right rear corner of the plate. Insert a few other valve body bolts in various locations to align the gasket and plate properly, then tighten the three M6 X 18 hex head cap screws for the stamped steel plate to 100 in/lb, or about 8 ft/lb. I have managed to keep all the check balls in their positions, except ONE... it appears to be the only one that goes in the casing side of the valve passages, between the plate and the tranny case. when moving the case around for a better position to work on the insides, it just hopped right out!

4l60e 4l65e 4l70e 4l75e transmission shift kit valve body rebuild kit. The check ball placement diagrams in. This is a photo illustrating the location of the seven check balls in gm's 4l60e transmission. Buy replacement check balls, valve body upgrades and more at . 4l60e shift improver kit installation instructions so you will be.

4l60e check ball location diagram

On this video we see the factory check-ball locations for this particular model. I also share with you the alternative check-ball locations that I have been ... This is a photo illustrating the location of the seven check balls in GM's 4L60E transmission. Buy replacement check balls, valve body upgrades and more at GMTransmissionParts.com. Step 4: Transmission Connectors (4L60E) Connect the Solenoid and TSS cables to the transmission. THE CONNECTORS MUST BE KEYED CORRECTLY for proper transmission operation (see the diagram below for details). Additionally, connect the Neutral Safety Switch and the Backup Lamp Switch. The neutral safety switch isn't related to the Quick 1

4l60e check ball location diagram. {1} CB3, CB4, CB5 (See early '89 check ball location page) If the plate has seats for these check balls, a ball must be installed. {2} Some '94-'95 manuals labeled CB13 as CB12 in the hydraulics and in the check ball ID section. The function of this ball has always been the same. {3} 5/16 steel ball in late '89 GM 4L60-E Valve Body Identification Guide. '93-'94. Number of Valve Body Solenoids. 4. EPC Solenoid. Early. 3-2 Control Solenoid. PWM (metal, white) 10-15 Ω. TCC Solenoid. The 4L60E has 10 check balls in total. Two of them are in capsules and pressed into the case. Special tools are needed to remove and install these capsules into the case. These you probably didnt mess with and are probably still in the case. Seven of the remaining eight check balls are placed in the VALVE BODY side of the separator plate. 4l60e check ball location diagram. This is a photo illustrating the location of the seven check balls in GM's 4L60E transmission. Buy replacement check balls, valve body upgrades and more at GMTransmissionParts.com. More information. Check ball locations in GM's 4L60E transmission valve bodies.

Corvette Ball locations in the Upper and Lower Valve body to Case. Im sure it works in older models as well. When disassembly, simply check video against y... Check ball locations in GM's 4L60E transmission valve bodies. There are a total of 7 check balls used in valve bodies 1993-2007. Get replacement balls from gmtransmissionparts.com. Find this Pin and more on GM 4L60E Valve Body Informationby Global Transmission Parts. More like this. 4l60e Transmission Rebuild. there are 7 check balls in the v-body.... TransGo diagram should indicate the locations. there is the check ball in the capsule in the case. Next to the accumulator bore in the case... another loose check ball is installed. 7 in the v-body , one in the case will = 8 plus the capsule check ball. Watch for excessive wear on the steel separator plate from the check balls Check ball locations in GM's 4L60E transmission valve bodies. Check to see if the push rod operates smoothly. When you pull the valve body off, all your check balls will fall out so its best to either get the transmission perfect flat upside down, or if its right side up, you will be alright.

on 4l60e Valve Body Bolt Diagram. Hardware torque specifications for GM's 4L60E automatic transmission. Get great Forward Accumulator Cover to Valve Body Bolt, 3. M6. x 11 N-m. Then i put the box with all the valvebody parts on the workbench, and . of the check ball locations and the bolt pattern for the valve body bolts. 4L60E Valve Body Diagram ... thanks. i appreciate your attempted diagram posting. somebody faxed me the information i needed. there are ten check balls in the 4l60e, but only one falls out of the case when you remove the valve body, two remain in the case. seven go in the valve body. Posted on Dec 30, 2009 Anonymous 37 Answers SOURCE: 4L60E INTERCHANGES I know the answer to your question. Change the wiring harness and pwm solenoid. Only the right solenoids will fit in the 95 harness if you get aftermarket harness you must use the plug that is the same as the 3-2 downshift solenoid. About 4l60e Valve Ball Check Body Diagram This listing is for a Re-manufactured Chrysler 45RFE, 545RFE Valve Body with 5 Check Balls, model years 2009-UP. pontiac firebird wiring diagrams 67-68-69 models Pontiac Firebird Parts catalog 1967-2002 1968 FISHER Body Service Manual_Oldsmobile_Buick_Pontiac_Chevrolet_Cadillac.
